Install Opticon Drivers & Application on a Computer

We use Opticon OPN2001 barcode scanner for refiling and other tasks that involve scanning barcodes.

On our computer we need two things: drivers and application to be able to download data from OPN2001.

OPN-2001 - Opticon Technical Support Knowledge Base

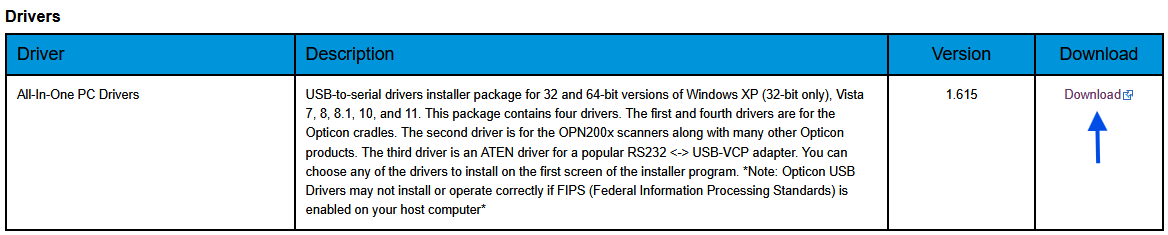

Click on "Drivers" next to 9.3:

Click on "Download":

Open the .zip file, USB Drivers Installer, then the .exe file and click on "Yes" to allow the application to make changes on your computer.

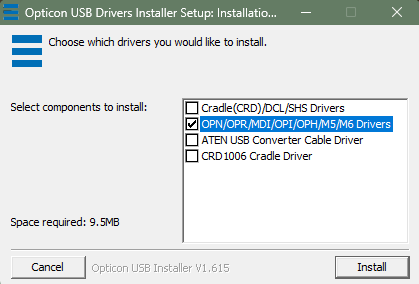

When the window open, uncheck all except "OPN/OPR/MDI/OPI/OPH/M5/M6 Drivers.

Click on "OK" after the drivers have been installed successfully.

Go back to the support page and click on "Software" after 9.2:

Click on "Download":

Open the .zip file, OPN200x Setup 2.19, then the .exe file and click on "Yes" to allow the application to make changes on your computer.

Click on "Next" > "I Agree" > Destination Folder should be on the C drive > "Next" > "Install" > "Do you want to create a shortcut on the desktop?" > "Yes" > "Finish"

With the application open, uncheck all the boxes under "Display" if they are checked.

Check the box next to "Save to file" and open the box with three dots.  Select the location on your computer where you would like to save the "Barcodes" file.

Close the application.

Do a test scan of couple barcodes then plug in OPN2001 and download the data to make sure it works.
